Delivery OT Table

Description

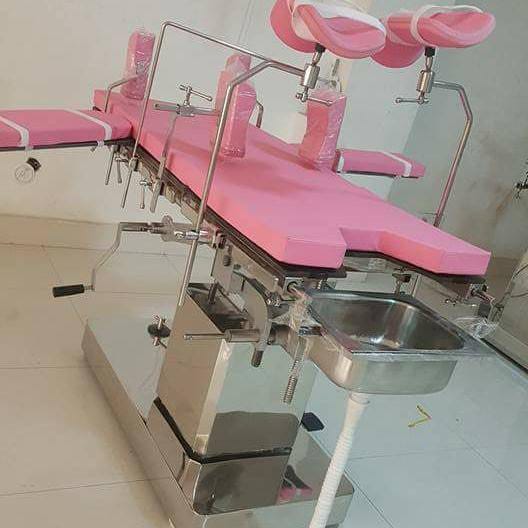

Hydraulic Operate Obstetric Delivery Bed (Model No. DTH– 02)

The Delivery bed is used for Baby Delivery and must incorporate the ideal blend of the patient’s requirements for comfort and the professional needs of the delivery team, focusing on the aesthetic and functional design of the entire product.

  • Hydraulically operated Delivery bed.
  • Delivery bed with complete accessories.

Operating Environment

The product is designed to be stored andto operate normally under the conditions of the purchaser’s country. The conditions include Power Supply, Climate, Temperature, Humidity, etc

Technical Specification:

  • This is sturdy and robust delivery table for labor and delivery.
  • Table Stainless steel 304 (non-magnetic) & side rail. Table top have 3 adjustable parts: ratchet operated rising backrest (75deg up and 6deg down), retractable foot end and a fixed center part. Table height adjustment by foot pedal.
  • Table top forward & backward tilting- forward 10deg/ backward 30 deg.
  • Have support handles positioned on either side of the rising backrest.
  • Leg support stands are waterproof and with washable protection.
  • Dimension (approximate): 1900 x 600 mm (Length x Width).
  • Height adjustment range: 630-850 mm.
  • Knee crutches and foot support is available.
  • The delivery table permits birth in:

  • Classic Lithotomic.
  • Sitting and/or semi-sitting.
  • Knee-elbow.
  • Vertical.
  • Squatting.
  • Caesarean, surgical and fetus extraction.
  • Vertical movement will be controlled/adjusted via hydraulically operated.
  • All movement and control via gas-spring operated by head/side levellers Quick release mechanism for back section adjustment during emergency situation for quick passage to CPR (Cardio Pulmonary Resuscitation) position.

Head and Lower Ends:

  • Easily removable (for resuscitation).
  • Made of Stainless Steel with plastic-covered bends and grips.
  • Removable lower end for easy access to the delivery. Have provision of IV pole attachment.
  • The bed is mounted on four anti-static castor wheels of dia. approx. 100mm, two with brakes.
  • Have three separate mattresses of at least 80 mm thickness for each section fixed in position to the top of the bed by Velcro strips on the underside of each mattress section, pad covering material to be anti- bacteria, anti-static, waterproof, fire retardant and washable.
  • The Delivery table have maximum weight at least 200 Kg.
  • Table material completed S.S. 304 (non-magnetic)
